Production of Yale Hoisting Equipment started in 1936 with the manufacture of the world-renowned Pul-Lift ratchet lever hoist. Since then, this robust and reliable general service tool along with a widely increased range of quality, performance rated products, has developed a leading position in the market.

Yale products are designed with practicality, endurance and safety in mind and ensure that whichever Yale Hoisting Product you choose, you can be assured of buying the best !


• Hand Chain Hoists

•  Electric Chain Hoists

•  Yale Ratchet Lever Hoists

•  Yale Wire Rope Winch


•  Yale Manual Wire Rope Winch

•  Yale Manual Wire rope Winch ( with worm gear drive)

•  Yale Cable Puller



The roots of Chester Hoist date back to the 1920's when Mr. Hal Wright Sr. developed the Wright Hoist in Lisbon, Ohio.

Chester Hoist offers a combination of premium quality specialty products and application engineering capabalities developed over many years serving the needs of the oil and gas industries. These products and capabilities make us uniquely qualified to handle your most difficult hoisting applications and to provide HOISTING SOLUTIONS.

•  Pneumatic Hoists

•  Electric Wireropes Hoists

•  Electric Low Headroom Chain Hoists

•  Zephyr Low Headroom Hoists


•  Zephyr Swivel Low Headroom




























•  Steel Wire Rope

•  Steel Wire Rope Slings

•  Rigging hardware

•  Hoisting Equipment

•  Heavy Duty Rollers

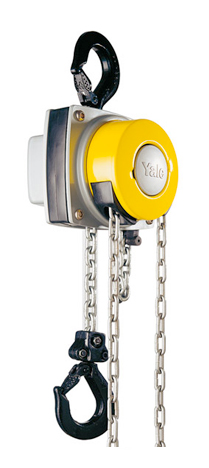

Hand chain hoist model Yalelift 360

Capacity 500 - 20000 kg

Areas of operation as well as operator conditions have been improved in trail-blazing fashion, which goes far
beyond the classical hand chain hoist.

Features
This revolutionary 360 rotating hand chain guide allows the operator to work from virtually any position, in confined spaces or above the load. The yalelift can even be operated from the side of the load which also makes it possible to use the hoists for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.

Optional

• Spark Resistance `features
• Chain container
• Overload prevention device
• Corrosion resistant versions

download PDF for more details


back to top

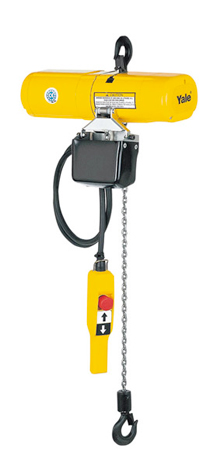

Electric chain hoist model CPS with suspension hook

Capacity 125 - 500 kg

The model CPS is the smallest and lightest within the family of Yale electric chain hoists. Reliability and compact design make it ideal for numerous applications in the construction industry, service companies and many industrial areas for moving small and medium loads.

Features

•  Standard lift height 3 m, control cable
   2 m (direct control)
• The 10-pocket load sheave ensures a    smooth running of the chain and    minimizes chain wear.
• Distance between hooks only 276 mm    (up to 250 kg capacity).

Optional

• Stainless steel load chain (no reduction    of working load limit)
•  Robust chain container
•  Festooned cable systems
•  Low voltage control 48 V
•  Manual and powered trolleys with clevis    or shackle to fit top hook suspended     chain hoists.


download PDF for more details







back to top

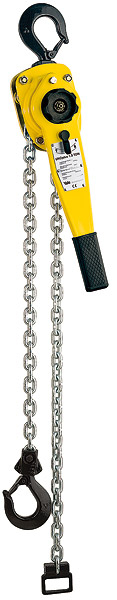

Ratchet lever hoist model UNOplus

Capacity 750 - 6000 kg

Further technical development turns the new ratchet lever hoist into the successor of our proven UNO model.
The versatile tool for lifting, pulling and securing of loads is characterised by its compact design, a robust stamped steel construction and a smooth free chaining device.

Features
• Forged suspension and load hooks,     manufactured from non-ageing, high     alloy tempering steel, yield under     overload instead of breaking.
• Alloy steel link chain with zinc-plated     finish, in accordance with national and     international standards and regulations.
• Robust chain guide rollers eliminate     fouling and jamming of chain on the     load sheave.
•   Robust chain end stop
• The standard free chaining device     serves to quickly attach the load.
•  Hand lever with ergonomic rubber grip     and optimized bearing seat in the     housing cover.
• Automatic screw-and-disc type load     brake with corrosion protected     components.
•  Sturdy bottom block with encapsulated     bolt connections.
• Due to optimized gearing a minimum     effort is required to operate the short     hand lever.
•  Impact resistant, reinforced plastic hand    wheel as standard, steel version     optionally available.


download PDF for more details





back to top

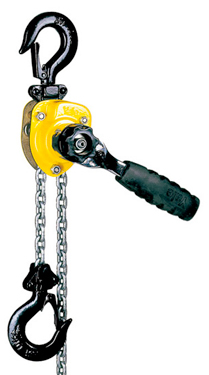

Ratchet lever hoist model Yalehandy

Capacity 250 - 500 kg

This hoist is the smallest and lightest Yale ratchet lever hoist for professional low weight applications.

Features
• Standard free chaining device (smooth    running).
• Extremely short distance between the    hooks, only 240/282 mm.


download PDF for more details







back to top





















Electric wire rope winch model RPE

Pulling force 250 - 1000 daN

The robust and extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position.

Features
•  Standard operating voltage 400 V, 50     Hz, 3-phase. 40% ED.
•   Motors protected to IP 54.

Optional
•  Different drum designs, e.g. extended to     accommodate longer rope, machined     grooves for exact reeling, with     separation web and 2nd rope outlet for     working with two ropes.
• Geared limit switches to limit rope     motion in both directions.
•   Single-phase A.C. motor 230 V, 50 Hz.
• Control by means of pendant control     including control switch with emergency     stop and 2 m long control cable.
• Contactor control with 42 V control     voltage.
•  Slack rope switch to automatically stop     the winch when rope tension eases e.g.     when the load touches down (only in     combination with low voltage control).
•  Frequency converter for stepless speed     control.
• Adjustable slip clutch to protect the     winch from overloading for models RPE     2-13, RPE 5-6 and RPE 5-12.
•  Special design according to BGV C1 for     theater stage applications available.


download PDF for more details



back to top
















Manual wire rope winch with spur gear drive model MWS

Pulling force 250 - 1000 daN

For the operation there where is no electricity or an increase of dirt

Features
•  Spur gears on roller bearings, rope     drum on plain bearings.

•  Easy and quick mounting onto walls,     poles, towers etc
.

Optional
•   Corrosion resistant version.

•   Grooved rope drum for improved     guidance of the wire rope.

• Separation webs for operation with     several wire ropes.


download PDF for more details




back to top






















Manual wire rope winch with worm gear drive model MWW

Capacities 250 - 5000 kg

Features
•  Worm Shaft on roller bearings, rope     drum on plain bearings

•  Small dimensions, compact design,      larger rope take - up

•.  Two rope directions for operations from      different positions

•    Two lifting speeds by means of       different setting of the crank handle      for capacities of 2.000 kg and above.

•    Automatic load pressure brake for safe      holding and extremely sensitive      lowering of the load


download PDF for more details




back to top












HAND CHAIN HOIST
MODEL YALELIFT 360
Capacity 500 - 20000 kg

























ELECTRIC CHAIN HOIST
MODEL YALELIFT 360
Capacity 125 - 500 kg





























RATCHET LEVER HOISTS
MODEL UNO
Capacity 750 - 6000 kg
























RATCHET LEVER HOIST
MODEL Yalehandy
Capacity 250 - 500 kg



















ELECTRIC WIRE ROPE
WINCH

MODEL RPE
Pulling force 250 - 1000 daN











































MANUAL WIRE ROPE
WINCH WITH SPUR GEAR

MODEL MWS
Pulling force 125 - 2000 daN































Manual Wire Rope WInch
with Worm Gear Drive

MODEL MWW
Capacities 250 - 5000 kg

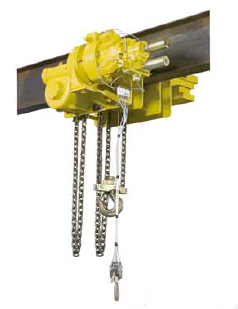

PNEUMATIC HOIST
MODEL SLA AIR HOIST























ELECTRIC WIREROPE HOIST
MODEL WIREROPE HOIST



























ELECTRIC CHAIN HOIST
SLE ELECTRIC
LOW HEADROOM CHAIN HOIST






























LOW HEADROOM HOIST
ZEPHYR LOW HEADROOM
HOISTS



































SWIVEL LOW HEADROOM HOISTS
ZEPHYR SWIVEL LOW HEADROOM HOISTS













































The standard pneumatic hoist package includes vane or piston motors and brakes with modulating valves for infinitely variable hoist motion. Single speed trolley or tractor motion is standard using vane motors and our standard worm gear reducers. Standard controls include a two or four lever pendant.

Features

•  Lowest Headroom Available

•  Capacities: 1-1/2 ton to 25 ton

•  Spark Resistance Models

•  Corrision Resistant Options

download PDF for more details




back to top

















Chester Wire Rope Electric Hoists feature worm gear drives for quiet, smooth, reliable operation. These hoists are available in single hook, twin hook or multiple hook models for lug, floor, ceiling or trolley mounting. Capacities from 1 to 15 tons in a variety of configurations are available to provide virtually trouble free operation in every type of application

Features

•  Lowest Headroom Models

•  Capacities: 1 ton to 15 ton

•  Hazardous Duty / Explosion Proof Models

•  Spark Resistance Models

•  Corrision Resistant Options

•  Long Lift Models Available

download PDF for more details




back to top












Primarily designed for those applications where headroom is limited, Chester Electric Chain Hoists provide years of trouble free operation in a variety of Class III applications. The units are equipped with worm drive gear reducers, case hardened load chain and are available in capacities from 1 through 25 tons. Choices of lug mounted, push/pull, hand geared or motorized trolley drives are available to meet a variety of applications.

Features

•  Lowest Available Headroom

•  Capacities: 1-1/2 ton to 25 ton

•  Hazardous Duty / Explosion Proof Models

•  Spark Resistance Models

•  Corrision Resistant Options



download PDF for more details




back to top











The Chester Zephyr Low Headroom Chain Hoist is designed for very limited head room applications, where other hoists cannot be used. The Low Headroom Hoist is custom built to fit a specific beam and can be built to suite patented tracks, I-Beams, Wide Flange beams or almost any other type of runway. The hoist incorporates a rugged steel frame, suspension members and covers and uses the heavy duty components common to our Zephyr Hoist product line. Features include our planetary gear train, positive acting Weston Style load brake, alloy steel load chain and a load wheel which can be reversed to double its useful life.

Features

•  Proven in Offshore Environments

•  Lowest Available Headroom

•  Capacities: 1-1/2 ton to 25 ton

•  Plain and Geared Trolley Models

•  Spark Resistance Models

•  Corrision Resistant Options



download PDF for more details


back to top













The Zephyr Swivel Truck Low Headroom Trolley Hoist maintains the absolute minimum distance between the bottom of the runway beam and the hook saddle in the uppermost position. They are available in 1/4 through 6 ton capacities with either plain or hand geared trolleys. These hoists combine the advantages of the Chester swivel truck trolley design with compact construction without sacrificing any essentials of ruggedness. These units incorporate the same heavy duty steel components common to our Zephyr Hoist product line.

Features

•  Very close Headroom

• Articulating Trolleys for Operation on     Curved Beams

•  Capacities: 1/2 ton to 6 ton

•  Spark Resistance Models

•  Corrision Resistant Options



download PDF for more details


back to top

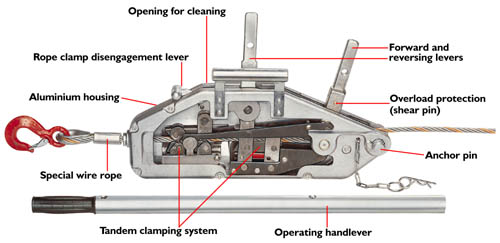

Yale Cable Puller

MODEL YALETRAC
Pulling force 800 - 3200 kgs




Yaletrac® cable pullers feature a lightweight, compact, high strength aluminium housing, smooth contour design with a large, flat bottom surface for increased stability in horizontal and vertical working positions.

Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.

Overload protection is by a shearing pin in the foward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load.

A lever disengages the rope clamp system allowing easy, smooth installation of the wire rope.

Yaletrac® uses a special flexible wire rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with a safety hook on the other end.

The parallel arrangement of the clamping system protects the wire rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.

The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac is again ready for use.
